CoolVac 37

BIGGER, BADDER BLADE + MORE HORSEPOWER = SPEED!

Lower your labor costs and get out of the attic quicker with the increased performance of our new high powered vacuums (Shown Below).

Powerful suction capable of doubling your current production. Recommend two (2) Ø4” (Ø10.16cm) hoses in attic connecting to a 4” x 4” to 6” (10.16cm x 10.16cm x 15.25cm) wye tube, for highest production.

Gusset Reinforced fan blade, AR-500 (abrasion resistant) 1⁄4” (0.64cm) hard steel, provides durability and 3x’s wear longevity.

Oversized 4” x Ø24″ (10.16cm x Ø60.96cm) fan blade @ 3600 R.P.M. = high “Tip Speed” = more pulling power.

Double Banded Fan chamber offers ultra-heavy duty 1⁄2” (1.27cm) thick AR-400 abrasion resistant armor plate which triples life of chamber.

Oversized 1.5” (3.81cm) Jack-Shaft with two (2) high speed  pillow block bearings, driven by quad power-band belt & sheave system, extends engine life.

Large fuel tanks provide half day running time without re-fueling.

Performance Data:

  • Vac Strength: 47 “WC (0.117 bar)
  • Airflow: 6400 CFM (10874 m3/h)

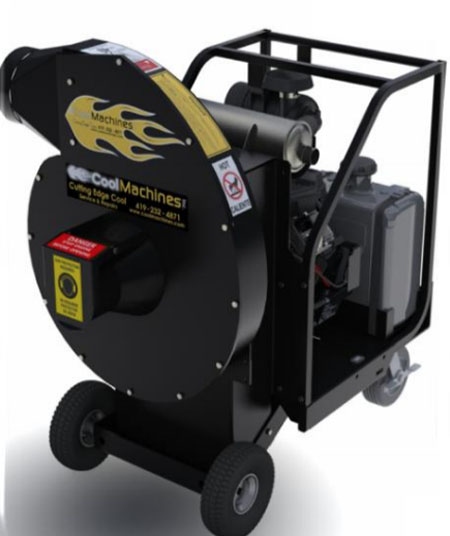

CoolVac 37 Gas

CoolVac 37 Gas

Performance Data:

Vac Strength: 47 “WC (0.117 bar)
Airflow: 6400 CFM (10874 m3/h)

  • Weight: 630 lbs. (286 kg)
  • Dimensions (LxWxH): 51” x 31” x 50” (130cm x 79cm x 127cm)
  • Engine: Briggs “Vanguard” V-twin OHV, 8 gallon tank (30.3L), positive pressure lubrication, low level oil shutdown, oil pressure shutdown switch, electric start, Electronic Fuel Injected (EFI).
  • Fan Housing: 1⁄4” (0.64cm) AR-500 steel fan x 1⁄2″ (1.27 cm) AR-400 steel chamber
  • Blade Diameter: 4″ x Ø24″ (10.16cm x Ø60.96cm)
  • r.p.m. / hour meter
  • Engine Warranty: 3 year commercial
  • Ø6″ (15.25cm) Inlet and Ø8″ (20.32cm) Outlet
  • Ø10″ (25.4cm) Run-Flat Wheels
  • Electric start with included 12 volt battery
  • Integrated engine block cooling air filter.
  • Belt Driven Fan Blade.

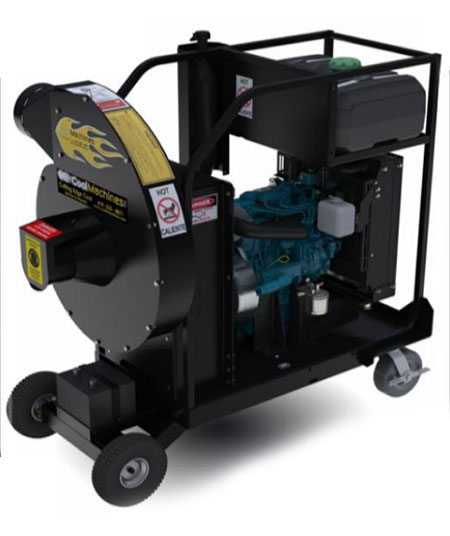

CoolVac 25hp Diesel

CoolVac 25hp Diesel

Performance Data:

Vac Strength: 47 “WC (0.117 bar)
Airflow: 6400 CFM (10874 m3/h)

  • Weight: 755 lbs. (343 kg)
  • Dimensions (LxWxH): 57” x 31” x 42” (145cm x 79cm x 107cm)
  • Engine: Kubota D1105E1, 12 gallon tank (45.4L), water cooled, low level oil shutdown, oil pressure shutdown switch. [electric start]
  • Fan Housing: 1⁄4” (0.64cm) AR-500 steel fan x 1⁄2″ (1.27cm) AR-400 steel chamber
  • Blade Diameter: 4″ x Ø24″ (10.16cm x Ø60.96cm)
  • r.p.m. / hour meter
  • Engine Warranty: 2 year commercial
  • Ø6″ (15.25cm) Inlet and Ø8″ (20.32cm) Outlet
  • Ø10″ (25.4cm) Run-Flat Wheels
  • Electric start with included 12 volt battery
  • Belt Driven Fan Blade
